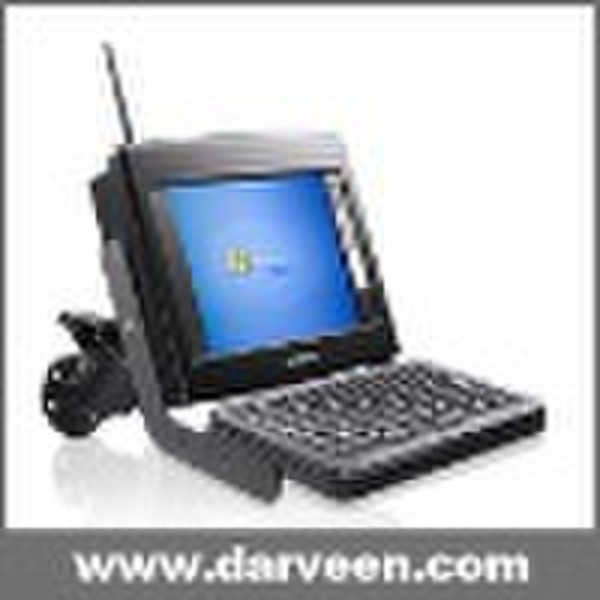

VT-725 Vehicle Mount Terminal

VT-725 Vehicle Mount Terminal Features: Intel Atom N270 1.6 GHz Processor High Quality 10.4" Panel with touchscreen, 800 x 600 resolution Function keys for 0% 100% brightness control Full IP65 Dust/Water Proof Enclosures (Except I/O parts) Aluminum Housing with Anti-Corrosion Treatments Anti-Shock and vibration Standard according to MIL810F & IEC60068-2-27 Wide Range 8 to 36V DC Input Acceptable (Optional) Wide range -20 60 operating temperature (Optional) Specifications: Processor System - CPU: Intel Atom N270 1.6 GHz - BIOS: AMI 4Mbit Flash - Chipset: Intel 945GSE / ICH7M Chipset - System Memory: 1 x SODIMM, Max 2GB DDR2 667/533 - LAN Controller: Dual Realtek RTL8111B GigaLAN Displays - Size: 10.4 color TFT LCD (Transflective Sunlight Readable Optional) - Resolution(H x V): SVGA 800 x 600 - Pixel Pitch (mm): 0.264Hx 0.264V - Contrast Ratio: 5001 (typ.) - Brightness (cd/m2): 400 (typ.) - Viewing Angle: -70 70 (H) / -60 50 (V) - Active Display Area: 211.2 (H) x 158.4 (V) mm - Display Color: 16.7M (8bits/color) Touchscreen - 5 Wire Resistive (Default) - IR Touch (Optional) Storage Options - 1 x Compact Flash Type I/II Socket - Industrial grade HDD (IDE interface - 2.5 HDDIDE interface Wireless LAN - 1x Mini PCI base Wireless LAN card with SMA antenna Input/Output Ports - 1 x RS-232 - 1 x RS-232/422/485Optional - 2 x USB v2.0 - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 2 x RJ 45-10/100Mbps Ethernet Port1000Mbps Optional - 1 x VGA InterfaceDB-15 - 1 x DC-in Jack (Lockable) - 1 x Audio JackLine in, Line out, Micro in - WLAN antenna SMA in topOptional Operating System - Windows XP Embedded - Windows XP - Windows CE 5.0 - Linux 2.6.11 Power Supply - Power Input: 12V DC w/ lockable connector - Wide Power Input Range: 8 36VDC (Optional) - Power Consumption: 66W typ. In Fornt Control - Control Button: Power On / Off Reset Brightness Up (up to 100%) Brightness Down (dimm to 0%) - LED indicator: Power On / Off HDD Status Enclosure - Dimensions(W x H x D)315 x 250 x 67 mm - Weight4.75 Kg Environmental - Opterating Temperature: -1055 -2060 For an industrial grade CF card or HDD - Relative Humidity1095%Non-condensing - Dust & Water Protection Enclosure Rating IP65 - Mounting: VESA mount, Vehicle mount - Shock: 5Hz 500Hz / 1.60/1.96/2.18G RMX / 3 Axis - Vibration: 30G (18ms duration) Approvals - CE - FCC Class B - MIL 810F / IEC60068-2-27 for Vibration / Shock
