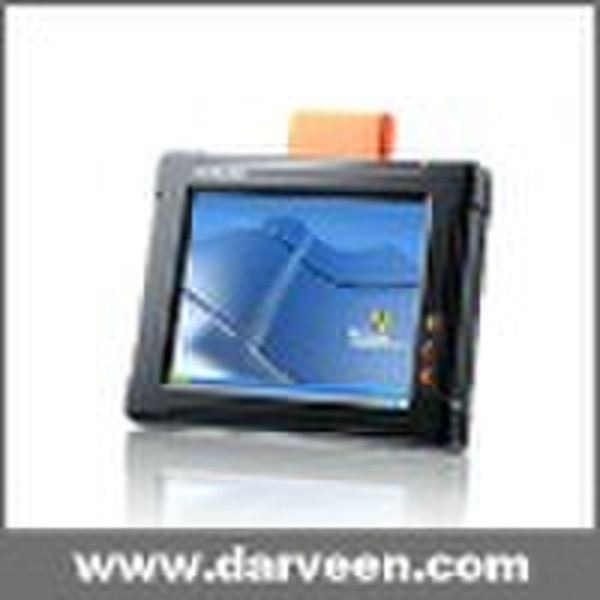

VT-624 Rugged PC

VT-624 Rugged PC Features: *Intel Atom N270 1.6 GHz Processor *High Quality 8.4" Panel with touchscreen, 800 x 600 resolution *Function keys for 0% 100% brightness control *Full IP65 Dust/Water Proof Enclosures (Except I/O parts) *Aluminum Housing with Anti-Corrosion Treatments *Anti-Shock and vibration Standard according to MIL810F & IEC60068-2-27 *Wide Range 8 to 36V DC Input Acceptable (Optional) *Wide range -20 60 operating temperature (Optional) Specifications: Processor System - CPU: Intel Atom N270 1.6 GHz - BIOS: AMI 4Mbit Flash - Chipset: Intel 945GSE / ICH7M Chipset - System Memory: 1 x SODIMM, Max 2GB DDR2 667/533 - LAN Controller: Dual Realtek RTL8111B GigaLAN Displays - Size: 8.4 color TFT LCD - Resolution(H x V): SVGA 800 x 600 - Pixel Pitch (mm): 0.213Hx 0.213V - Contrast Ratio: 5001 (typ.) - Brightness (cd/m2): 450 (typ.) - Viewing Angle: -60 60 (H) / -40 60 (V) - Active Display Area: 170.4 (H) x 127.8 (V) mm - Display Color: 262,114 (6bits/color) Touchscreen - 5 Wire Resistive Storage Options - 1 x Compact Flash Type I/II Socket Wireless LAN - 1x Mini PCI base Wireless LAN card with SMA antenna Input/Output Ports - 1 x RS-232/422/485 - 2 x USB v2.0 - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 2 x RJ 45-10/100Mbps Ethernet Port1000Mbps Optional - 1 x VGA InterfaceDB-15 - 1 x DC-in Jack (Lockable) - WLAN antenna SMA in topOptional Operating System - Windows XP Embedded - Windows XP - Windows CE 5.0 - Linux 2.6.11 Power Supply - Power Input: 12V DC w/ lockable connector - Wide Power Input Range: 8 36VDC (Optional) - Power Consumption: 50.5W typ. In Fornt Control - Control Button: Power On / Off Reset Brightness Up (up to 100%) Brightness Down (dimm to 0%) - LED indicator: Power On / Off HDD Status Enclosure - Dimensions(W x H x D)277 x 219.5 x 59.7 mm - Weight3.75 Kg Environmental - Opterating Temperature: -1055 -2060 For an industrial grade CF card or HDD - Relative Humidity1095%Non-condensing - Dust & Water Protection Enclosure Rating IP65 - Mounting: VESA mount, Vehicle mount - Shock: 5Hz 500Hz / 1.60/1.96/2.18G RMX / 3 Axis - Vibration: 30G (18ms duration) Approvals - CE - FCC Class B - MIL 810F / IEC60068-2-27 for Vibration / Shock
