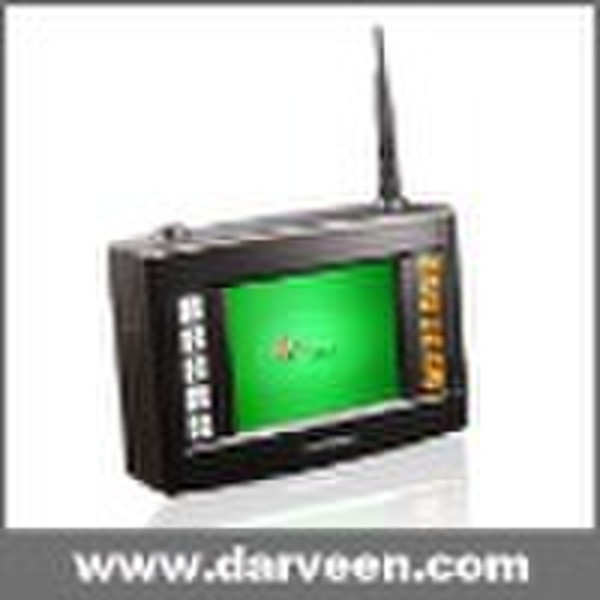

VT-533 Vehicle Mount Computer

VT-533 Vehicle Mount Computer Features: *High Quality 5.7" Panel with touchscreen *Rugged aluminum enclosure and fanless design *Full IP65 Dust/Water Proof Enclosures *Anti-Shock and vibration Standard according to MIL810F *Wide Range 9 to 36V DC Input Acceptable *Wide range -30 50°c operating temperature (Optional) *Flesible expansion capability for 802.11b/g, GSM/GPRS, CDMA, 3G, GPS *VESA standard for flesible mounting kets Specifications: Processor & Memory - CPU: Intel PXA270 520MHz - On-board RAM: 64MB SDRAM - On-board Flash: 1MB flash on board for bootloader 128MB system flash for system image and customer AP Displays - Size: 5.7 SHARP Color TFT LCD - Resolution(H x V): QVGA 320 x 240 - Brightness (cd/m2): 500 (typ.), 10%100% brightness control - Active Display Area: 115.2 (H) x 86.4 (V) mm - Lamp Life Time: 50000 hrs. Touchscreen - 4-wire resistance type Storage Options - 1 x Compact Flash Type II Card - 1 x SD/MMC Card * When using WLAN module, CF slot is eliminated Wireless LAN - SUMMIT 802.11a/b/g Compact Flash Type II WLAN Card (Optional) - GPS (COM3) (Optional) - Quad-band GSM/GPRS Module (COM1) (Optional) - CDMA (COM1) (Optional) - 3G (COM1) (Optional) Input / Output Ports - 2 x RS-232 (COM1,COM3COM3 is internal - 1 x RS-232/422/485COM2 - 2 x USB v1.0one is internal - 1 x 10/100Mbps Ethernet Port - 1 x Compact Flash Type II (internal) Operating System - Windows CE 5.0 Power Supply - Wide Power Input Range: 9 36VDC - Power Consumption: 15W typ. - Turn On: Press Power button for one second - Turn Off: Press Power button for three seconds Enclosure - Dimensions(W x H x D)220 x 160 x 60 mm - Weight1.5 Kg Environmental - Opterating Temperature: -10—50°c -30—50°c For an industrial grade CF card or HDD - Relative Humidity595%Non-condensing - Dust & Water Protection Enclosure Rating IP65 - Shock: 3G RMS 5-500Hz 12 hours XYZ direction - Vibration: 30G (11ms duration) Approvals - EMC: CE, FCC Class B, CCC - Safety: UL, CUL, CE; CCC
