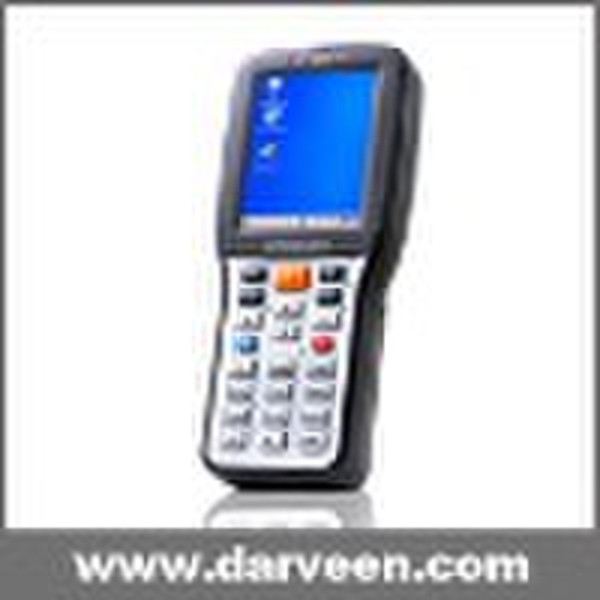

HT-216 Handheld Terminal

HT-216 Handheld Terminal: Features * SAMSUNG S3C2440 400MHz Processor * Full IP54 Dust/Water Proof Enclosures * Windows CE 5.0 Operating System * Build-in GPRS Module * 1D Barcode Scanner * Long Operating Time with High Capacity Battery Pack(3600mAh) Specifications Processor & Memory - CPU: SAMSUNG S3C2440 400MHz - On-board RAM: 64MB SDRAM - On-board ROM: 128MB NAND FLASH Displays - Size: 2.8” transflective TFT LCD with LED backlight - Resolution(H x V): 240 x 320 (QVGA) - Hotkey or Software brightness control - Viewing Angle(H/V): 43.2/57.6 - Lamp Life Time: 50,000 hrs. Touchsreen - 4-Wire Resistance Type Touch Panel GPRS Wireless Module - Operating Band: 900/1800MHz - Compliant to GSM phase 2/2+ - Output Power: Class 4(2W) / Class 1(1W) - CSD Data Transmission: Up to 14.4 kbps, USSD Support - GPRS Multi-slot: Class 10 - GPRS Data Transmission: Max. 85.6 kbps, Coding Schemes CS 1-4 - SMS Mode: MT, MO, CB, Text, PDU - FAX: Group 3, Class 1 - SIM Card Interface: 1.8V, 3V •1D Barcode Scanner - Engine Mode: 1D Laser Engine - Light Source: 650 nm Visible Laser Diode - Max. Resolution: 0.078mm - Max. Depth of field: 820mm - Scan Rate: 100 scans/sec - Decode Rate: 400 decodes/sec - Reading Angle: ±65° - Laser Safety: EN60825-1, Class 1 - Supported 1D symbologies: UPC-A, UPC-E, EAN-13, EAN-8, - ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar(formerly RSS) variants •External Port - 1 x USB v1.1 Client - 1 x RS-232 COM Port •Keypad & Buttons - One 10 Numeric keypad - One Power Button - One Barcode Scanner Button - Eight Application Buttons - Four Navigation Buttons - Three Control Buttons(Fn, Caps, Bs) •Operating System - Windows CE .NET 5.0 •Power Supply - Standard Li-ion Battery Pack,3.7V, 3600mAh, - 12 Hours Battery Operation (1800 scans/hours) - 18 Hours Battery Operation (200 scans/hours) - 4 Hour Battery Charging Time •Enclosure - Dimensions(W x H x D): 160 x 70 x 30 mm - Weight: 220 g with Standard Battery •Environmental - Operating Temperature: -10～50°C - Storage Temperature: -30～70°C - Relative Humidity: 10～95%（Non-condensing） - Dust & Water Protection Enclosure Rating IP54 - 1.2 meter (4ft.) free drop to concrete
